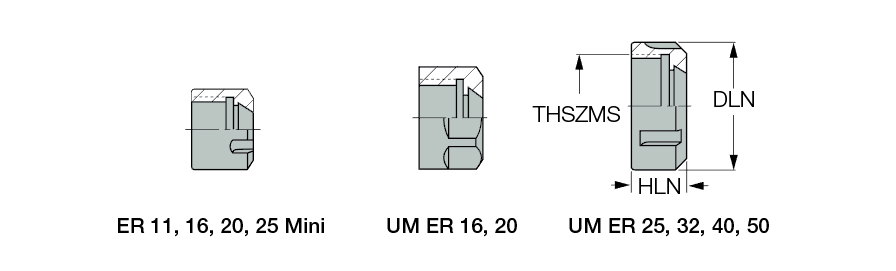

| Diameter Lock Nut (DLN) | 16 mm | Overall Length (OAL) | 10.8 mm |
| Lock Nut Height (HLN) | 10.8 mm | Thread Size | M13X0.75 |
| Connection Thread Nominal Size Machine Side (THSZMS) | M13X0.75 | Wrench Size | 16 mm |
| Application | | Accessories | | Body Material | Steel |
| Measurement Type | Metric | Unit | M |
| Tool Type | Nuts |
Product Features

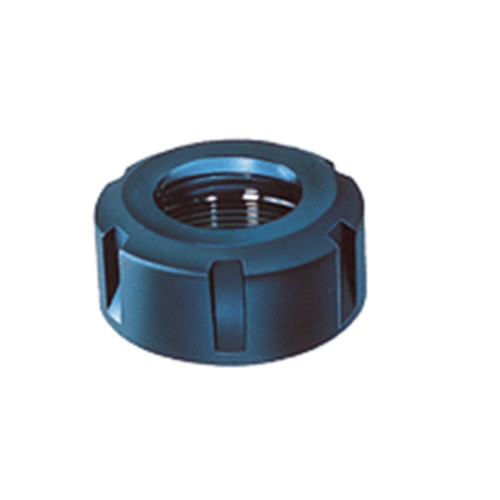

| Family Description | Clamping Nuts for DIN 6499 ER Collet Chucks | FamilyName | NUT ER-UM/MINI |
| Remarks | Torque: Recommended torque (Nm) for clamping | BrandName | Tungaloy |
| COO | GERMANY |
Shipping Info
Weight per item
0.0070
Name
Clamping Nuts
FamilyName
NUT ER-UM/MINI
BrandName
Tungaloy
