| Application | | Inserts for miniature | | Coating | TiCN |
| Corner Radius (RE) | 0.1 mm | Grade | QM3 |
| Insert Thickness (S) | 1.59 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 3.97 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 60 Degrees | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
Product Features
| COO | Japan | BrandName | NTK Cutting Tools |

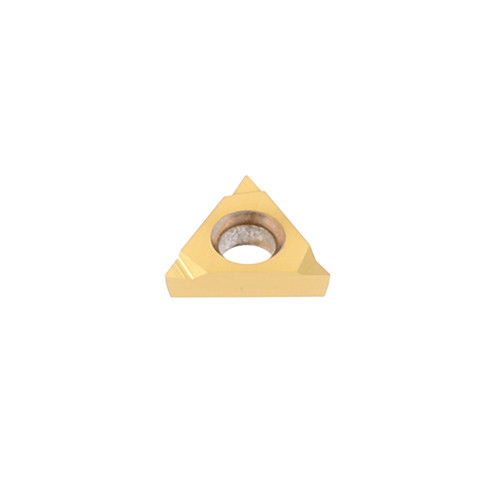

| FamilyName | TCGH-F05 type insert |
Shipping Info
Weight per item
0.0003
Name
Turning Indexable Inserts
FamilyName
TCGH-F05 type insert
BrandName
NTK Cutting Tools
