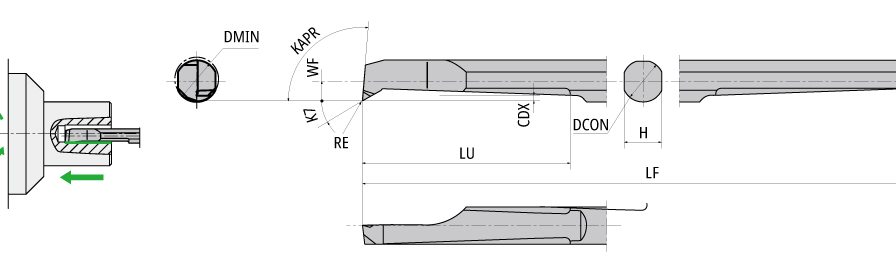

| Connection Diameter Machine Side (DCONMS) | 5 mm | Functional Width (WF) | 2.4 mm |
| Minimum Bore Diameter (DMIN) | 5.2 mm | Usable Length (LU) | 25 mm |
| Functional Length (LF) | 70 mm | Shank Height (H) | 4.5 mm |
| Coating | TiAlN | Body Material | Carbide |
| Grade | DT4 | Cutting Edge Material | Carbide |
| Application | | Inserts for miniature | | Measurement Type | Metric |
| Corner Radius (RE) | 0.05 mm | Unit | M |
| Cutting Depth Maximum (CDX) | 0.5 mm |
Product Features
| COO | Japan | BrandName | NTK Cutting Tools |
| FamilyName | SBFS-S Sharp cutting edge |
Shipping Info
Weight per item
0.0201
Name

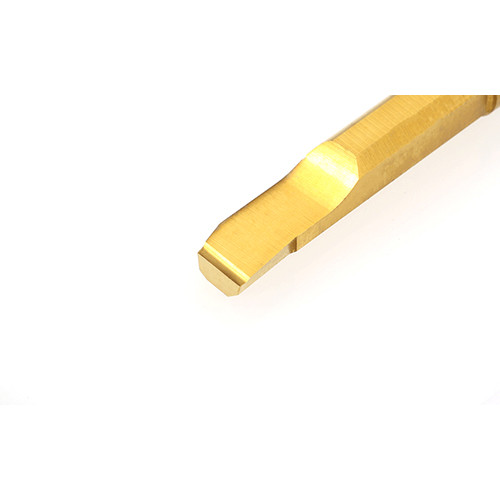

Solid Boring Bars
FamilyName
SBFS-S Sharp cutting edge
BrandName
NTK Cutting Tools
