T16Q-STUPR13-D18

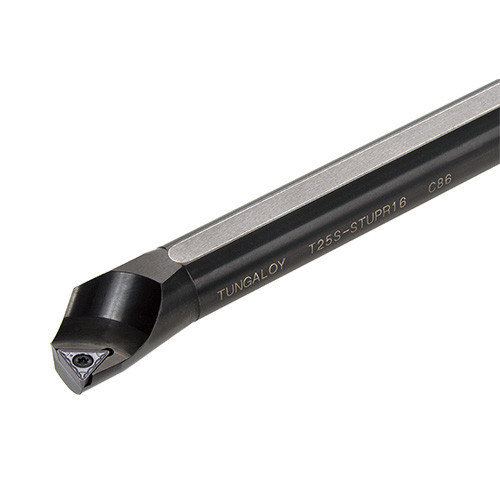

Tsuppari-Ichiban boring bar, for posi triangle insert with 11 deg clearance

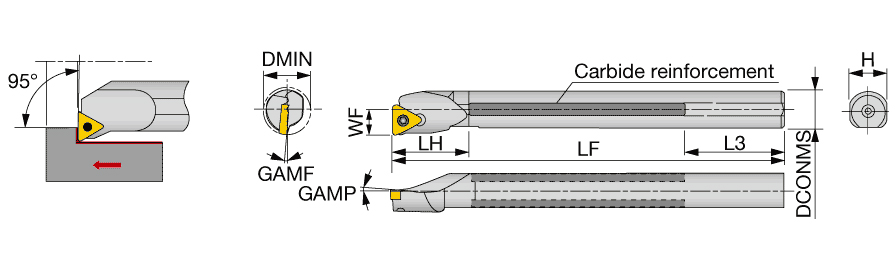

| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | | For Triangular insert | |
| Functional Length (LF) | 180 mm | Rake Angle Axial (GAMP) | 5 Degrees |
| Head Length (LH) | 30 mm | Rake Angle Radial (GAMF) | -3.5 Degrees |
| Shank Height (H) | 15 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 9 mm | Body Material | TSUPPARI |
| Master Insert Identification (MIID) | TPMT130304 | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 18 mm | Unit | M |
Product Features
| Family Description | Tsuppari-Ichiban boring bar, for posi triangle insert with 11 deg clearance | FamilyName | T-STUPR/L |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (STUPL** type), and the left hand insert (L) is used for the right hand toolholders (STUPR** type). Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.3150
Name
Indexable Internal Turning Tools
FamilyName
T-STUPR/L
BrandName
Tungaloy
