E04G-SEXPR03-D045

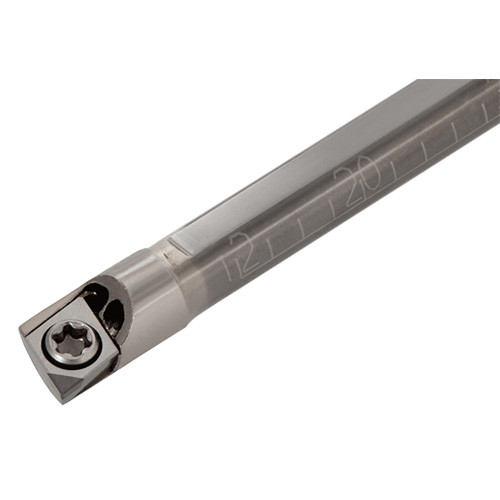

Screw-on boring bar, for posi 75 deg rhombic insert with 11 deg clearance

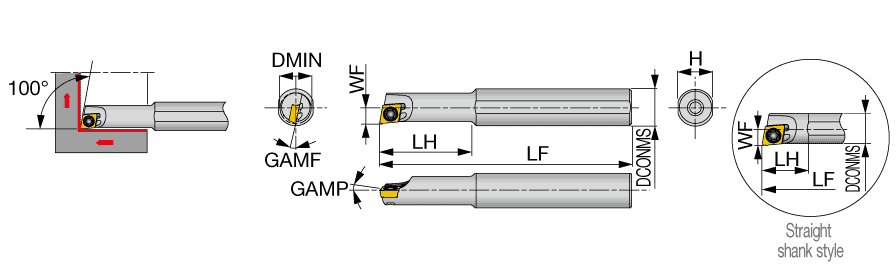

| Connection Diameter Machine Side (DCONMS) | 4 mm | Application | | For 75deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 90 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Head Length (LH) | 9 mm | Rake Angle Radial (GAMF) | -15 Degrees |
| Shank Height (H) | 3.8 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 2.3 mm | Body Material | Carbide |
| Master Insert Identification (MIID) | EPGT03X102 | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 4.5 mm | Unit | M |
Product Features
| Family Description | Screw-on boring bar, for posi 75 deg rhombic insert with 11 deg clearance | FamilyName | A/E-SEXPR/L |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SEXPL** type), and the left hand insert (L) is used for the right hand toolholders (SEXPR** type). Torque: Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0310
Name
Indexable Internal Turning Tools
FamilyName
A/E-SEXPR/L
BrandName
Tungaloy
