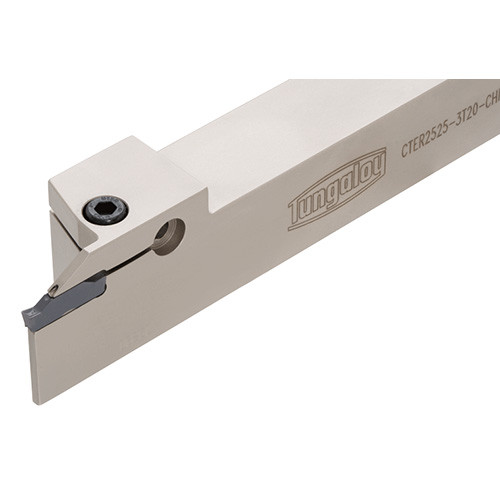

CTER2525-3T25-CHP
External toolholder for grooving, parting & turning, with high pressure coolant channels, monoblock type

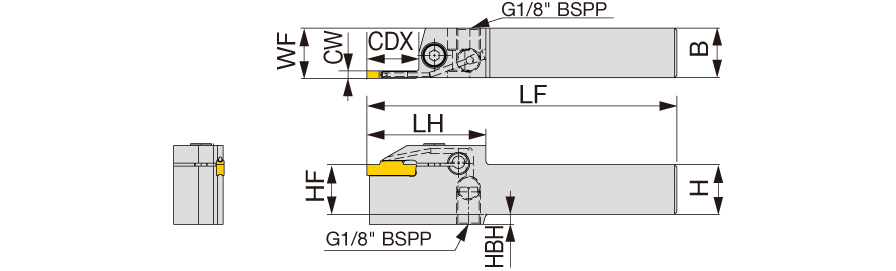

| Cutting Width Minimum (CWN) | 2.5 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 3.49 mm | Application | | External grooving | |
| Shank Height (H) | 25 mm | Body Material | Steel |
| Shank Width (B) | 25 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 23.8 mm | Measurement Type | Metric |
| Functional Length (LF) | 150 mm | Unit | M |
| Head Length (LH) | 51 mm |
Product Features
| Family Description | External toolholder for grooving, parting & turning, with high pressure coolant channels, monoblock type | FamilyName | CTER/L-CHP |
| Remarks | When depth is deeper than (insert length 1.5 mm), 1 corner type is recommended. Torque:Recommended torque (Nm) for clamping | BrandName | Tungaloy |
| COO | SOUTH KOREA |
Shipping Info
Weight per item
0.0000
Name
Groove/Turn Indexable Holders
FamilyName
CTER/L-CHP
BrandName
Tungaloy
