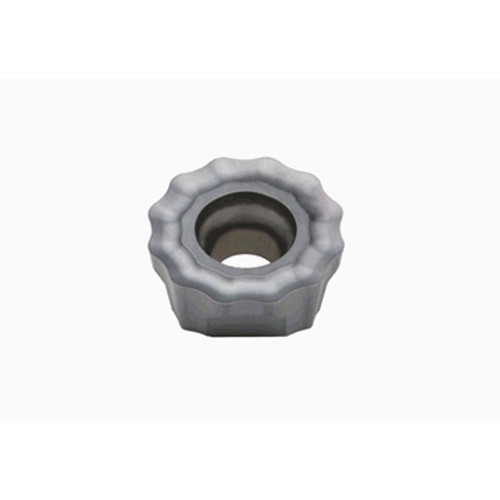

RCMT1606EN-NMJ AH120
Insert for RoundSplit cutters with serated edges for drasticreduction of chattering
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Application | | Profile Milling | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 8 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 8 mm | Minimum Feed per Tooth (fz(min)) | 0.17 mm/tooth |

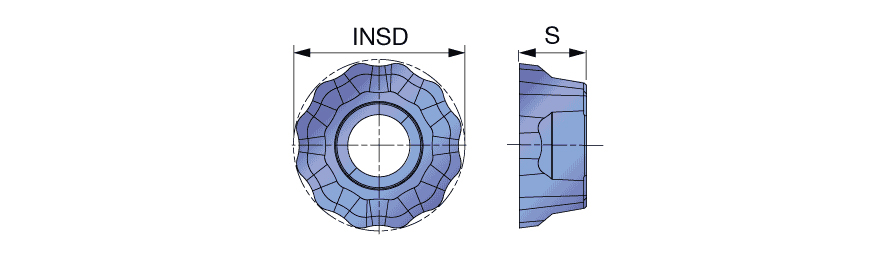

| Inscribed Circle Diameter (IC) | 16 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 6.5 mm | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH120 | Unit | M |
Product Features
| Family Description | Insert for RoundSplit cutters with serated edges for drasticreduction of chattering | FamilyName | RCMT-NMJ |
| COO | GERMANY | BrandName | Tungaloy |
Shipping Info
Weight per item
0.1290
Name
Milling Indexable Inserts
FamilyName
RCMT-NMJ
BrandName
Tungaloy
