| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | AH3135 |
| Application | | High Feed Milling | | Maximum Feed per Tooth (fz(max)) | 1.3 mm/tooth |
| Insert Length (INSL) | 12 mm | Cutting Edge Material | Carbide |

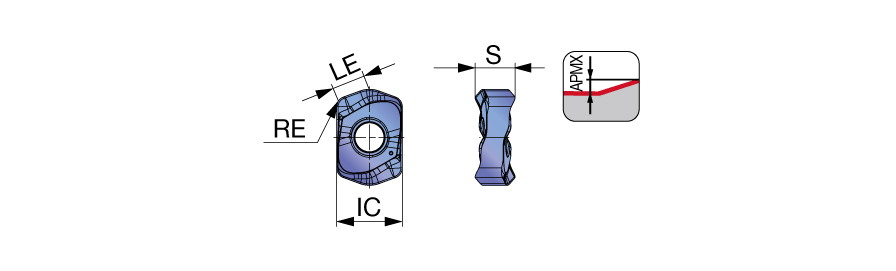

| Corner Radius (RE) | 1.3 mm | Minimum Feed per Tooth (fz(min)) | 0.3 mm/tooth |
| Depth of Cut Maximum (APMX) | 1.3 mm | Number of Cutting Edges | 4 |
| Insert Width (W1) | 8.2 mm | Cutting Edge Effective Length (LE) | 4.36 mm |
| Inscribed Circle Diameter (IC) | 8.2 mm | Measurement Type | Metric |
| Insert Thickness (S) | 5 mm | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
Product Features

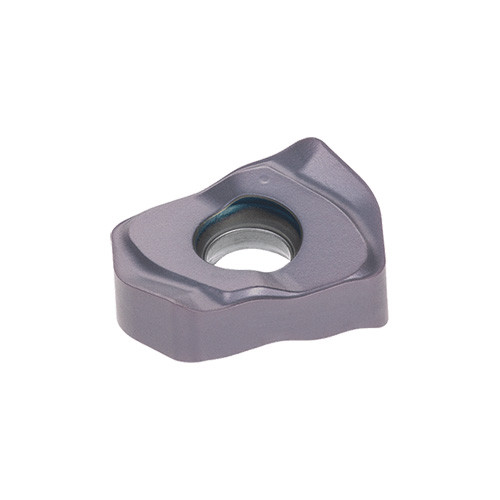

| Family Description | Double-sided insert with 4 edges for high-feed milling | FamilyName | LNMX-HJ-TUN6735305 -M |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.101
Name
Milling Indexable Inserts
FamilyName
LNMX-HJ-TUN6735305 -M
BrandName
Tungaloy
