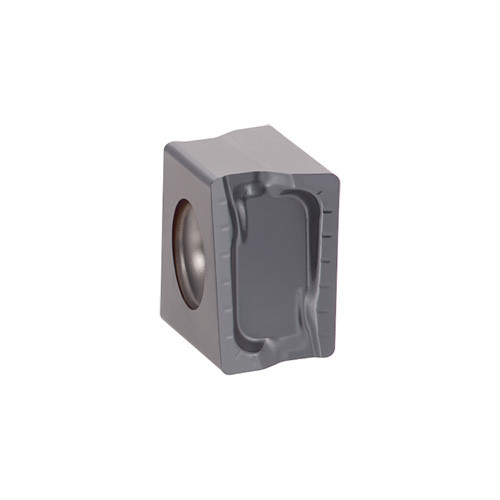

LMEU150920ZNEN-MJ AH120
Tangentially mounted inserts with 4 cutting edges for slot milling cutters
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | AH120 |
| Application | | Slot Milling | | Cutting Edge Material | Carbide |

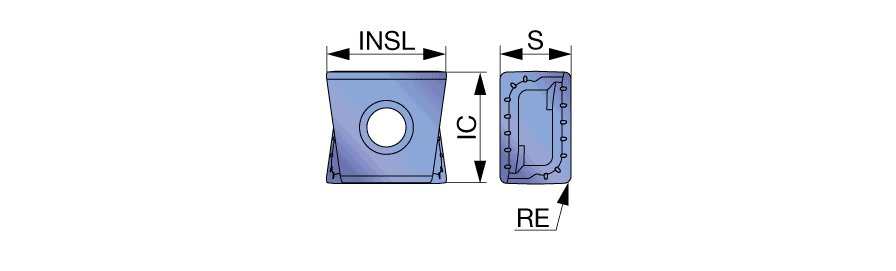

| Insert Length (INSL) | 15.4 mm | Tool Type | Mill Tangential Inserts |
| Corner Radius (RE) | 2 mm | Number of Cutting Edges | 4 |
| Insert Width (W1) | 15 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 15 mm | Body Material | Carbide |
| Insert Thickness (S) | 9.5 mm | Unit | M |
| Coating | TiAlN |
Product Features
| Family Description | Tangentially mounted inserts with 4 cutting edges for slot milling cutters | FamilyName | LMEU-MJ |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Milling Indexable Inserts
FamilyName
LMEU-MJ
BrandName
Tungaloy
