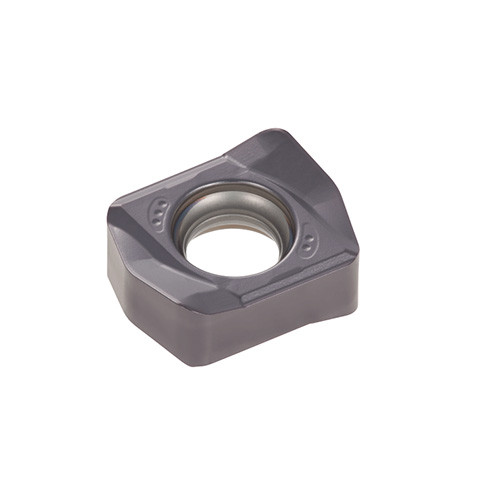

LNMU06X5ZER-MJ AH725
Double sided insert with 4 edges and MJ chipbreaker
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 1.5 mm/tooth |
| Application | | High Feed Milling | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 2 mm | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 1.5 mm | Minimum Feed per Tooth (fz(min)) | 0.5 mm/tooth |
| Insert Width (W1) | 12 mm | Number of Cutting Edges | 4 |
| Inscribed Circle Diameter (IC) | 12 mm | Cutting Edge Effective Length (LE) | 6 mm |
| Insert Thickness (S) | 7 mm | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH725 | Unit | M |
Product Features
| Family Description | Double sided insert with 4 edges and MJ chipbreaker | FamilyName | LNMU06-MJ |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.1160
Name
Milling Indexable Inserts
FamilyName
LNMU06-MJ
BrandName
Tungaloy
