TFE12R125M32.0E10A

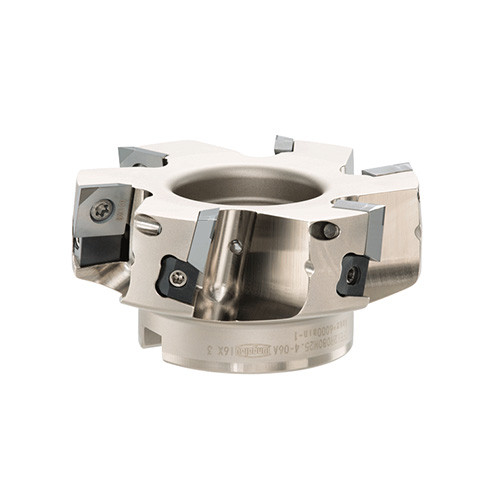

85.5 deg face mills for aluminum machining, with screw clamped inserts and adjustable pockets for axial runout

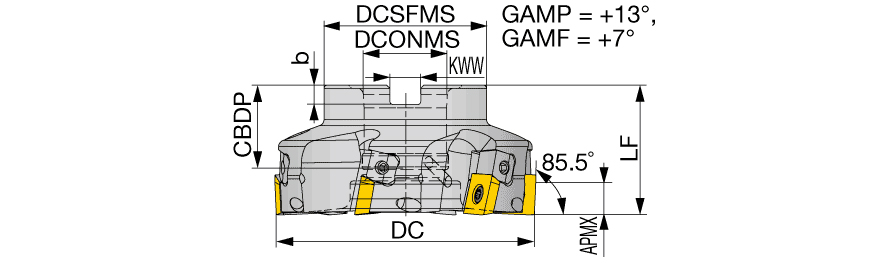

| Cutting Diameter (DC/DCX) | 126 mm | Body Material | Steel |
| Cutting Diameter (DC) | 125 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 126 mm | Application | | Face Milling | |
| Cutting Item Count (CICT) | 10 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 8 mm | Functional Length (LF) | 50 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Tool Type | 90 Facemills |
| Overall Length (OAL) | 50 mm | Unit | M |
| Master Insert Identification (MIID) | SEGW12X4ZEPR |
Product Features
| Family Description | 85.5 deg face mills for aluminum machining, with screw clamped inserts and adjustable pockets for axial runout | FamilyName | TFE12R-A |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
2.4400
Name
Indexable Face Mills
FamilyName
TFE12R-A
BrandName
Tungaloy
