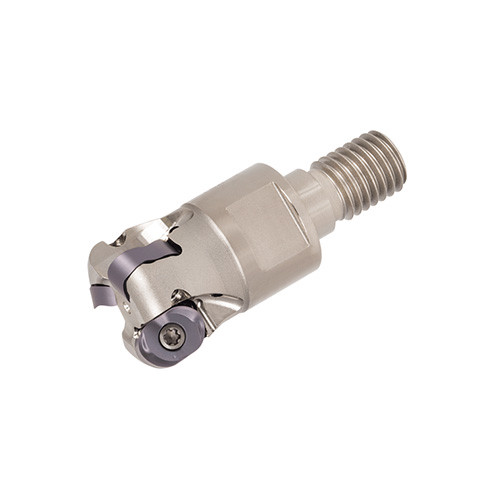

HXLN04M025M12R03
Radius cutter with double-sided insert; Modular head with TungFlex threaded adaptation

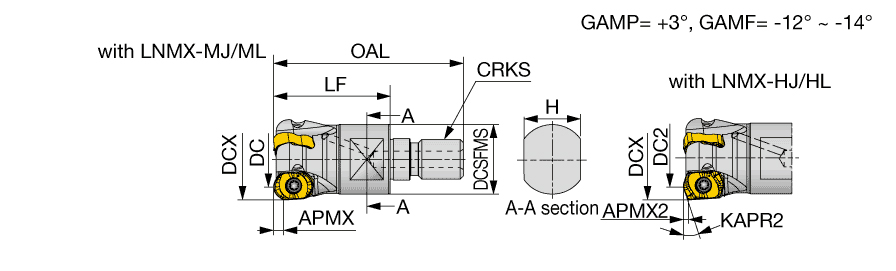

| Cutting Diameter (DC/DCX) | 25 mm | Functional Length (LF) | 35 mm |
| Cutting Diameter (DC) | 25 mm | Measurement Type | Metric |
| Cutting Item Count (CICT) | 3 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 4 mm | Connection Retention Knob Thread Size (CRKS) | M12 |
| Overall Length (OAL) | 57 mm | Shank Height (H) | 17 mm |
| Application | | High Feed Milling | Profile Milling | | Cutting Diameter Maximum (DCX) | 25 mm |
| Connection Diameter Machine Side (DCONMS) | 21 mm | Unit | M |
| Master Insert Identification (MIID) | LNMX0405R4-MJ |
Product Features
| Family Description | Radius cutter with double-sided insert; Modular head with TungFlex threaded adaptation | FamilyName | HXLN-M |
| Remarks | APMX may vary with insert type. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.1730
Name
Indexable End Mills
FamilyName
HXLN-M
BrandName
Tungaloy
