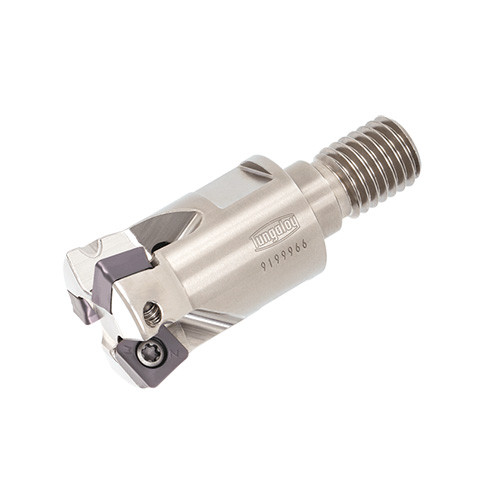

HXSW09M032M16R04
High-feed milling cutters with 4-corner single sided inserts; Modular head with TungFlex threaded adaptation
| Cutting Diameter (DC/DCX) | 32 mm | Tool Type | Fast Feed Endmill |
| Cutting Diameter (DC) | 32 mm | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Cutting Item Count (CICT) | 4 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 1.5 mm | Body Material | Steel |
| Overall Length (OAL) | 63 mm | Connection Retention Knob Thread Size (CRKS) | M16 |
| Application | | High Feed Milling | | Shank Height (H) | 22 mm |
| Connection Diameter Machine Side (DCONMS) | 28.8 mm | Cutting Diameter Maximum (DCX) | 32 mm |
| Master Insert Identification (MIID) | SWMT0904ZER-MM | Unit | M |
| Functional Length (LF) | 40 mm |
Product Features
| Family Description | High-feed milling cutters with 4-corner single sided inserts; Modular head with TungFlex threaded adaptation | FamilyName | HXSW09-M |
| Remarks | APMX may vary with insert type. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Indexable End Mills
FamilyName
HXSW09-M
BrandName
Tungaloy
