EPAV12M025C25.0R04
Square shoulder endmill, shank type, with screw clamp system

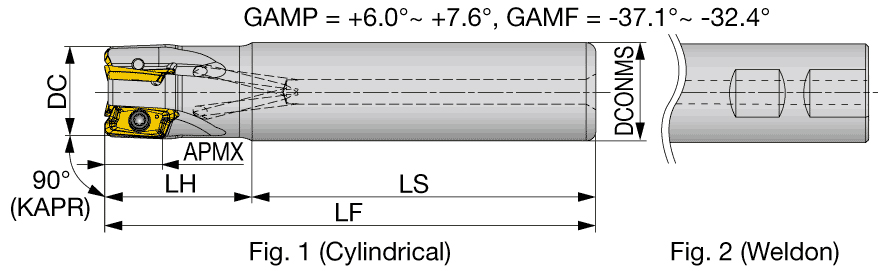

| Cutting Diameter (DC/DCX) | 25 mm | Master Insert Identification (MIID) | AVMT120408PDER-MM |
| Cutting Diameter (DC) | 25 mm | Head Length (LH) | 35 mm |
| Cutting Item Count (CICT) | 4 | Functional Length (LF) | 115 mm |
| Depth of Cut Maximum (APMX) | 11.5 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 115 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Shoulder Milling | | Cutting Diameter Maximum (DCX) | 25 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Unit | M |
Product Features
| Family Description | Square shoulder endmill, shank type, with screw clamp system | FamilyName | EPAV12 |
| Remarks | APMX may vary with insert type. For APMX, please refer to insert size table. When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R". Please click on "More Info". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Indexable End Mills
FamilyName
EPAV12
BrandName
Tungaloy
Related Documentation
When using inserts with corner radius RE >= 2.0 mm, "R" of standard cutter bodies have to be modified to 2.0 mm.
