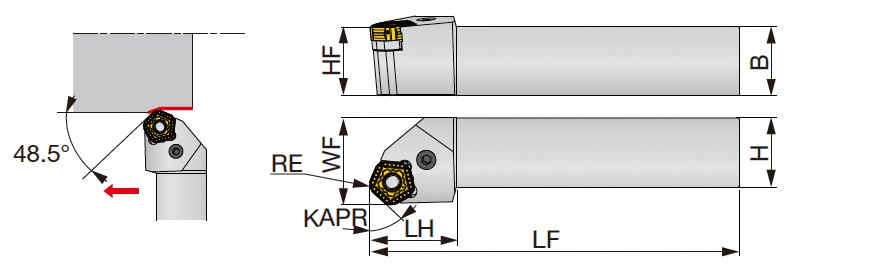

| Shank Height (H) | 25 mm | Application | | For Heavy Turning | |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | -5 Degrees |
| Overall Length (OAL) | 150 mm | Rake Angle Radial (GAMF) | -7 Degrees |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Head Length (LH) | 35 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 32 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Master Insert Identification (MIID) | POMG110612-MNW |
Product Features

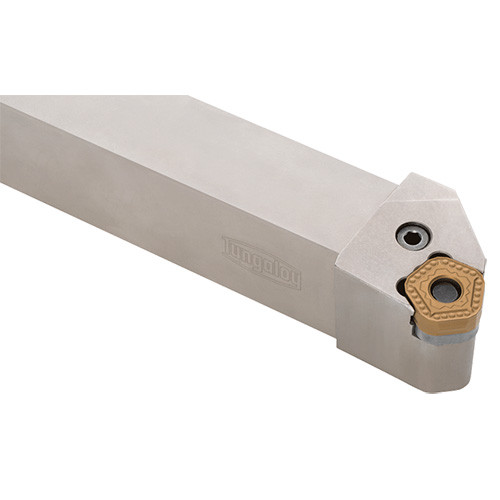

| Family Description | Lever lock type toolholder with 48.5deg approach angle for pentagonal inserts | FamilyName | PPXOR/L-HD |
| Remarks | Note: Since the corner angle of TurnTenFeed insert is 108 deg, the workpiece corner may require additional post process to remove stock to achieve a right angle. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
General Indexable Turning Tools
FamilyName
PPXOR/L-HD
BrandName
Tungaloy
