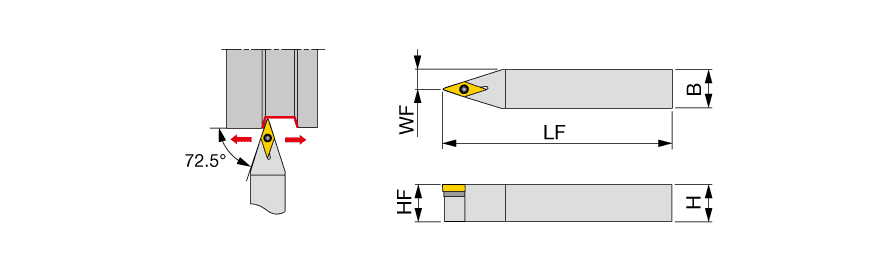

| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | VCMT160408 |
| Shank Width (B) | 25 mm | Application | | For 35deg Rhombic insert | |
| Overall Length (OAL) | 150 mm | Body Material | Steel |
| Functional Length (LF) | 150 mm | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 39.9 mm | Measurement Type | Metric |
| Functional Width (WF) | 12.5 mm | Unit | M |
| Cutting Direction (HAND) | Neutral |
Product Features

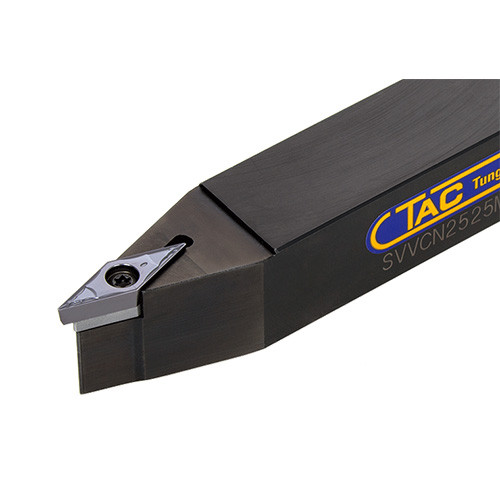

| Family Description | Screw-on clamp toolholder with 72.5deg approach angle, for positive 35deg rhombic inserts | FamilyName | SVVCN |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.6710
Name
General Indexable Turning Tools
FamilyName
SVVCN
BrandName
Tungaloy
