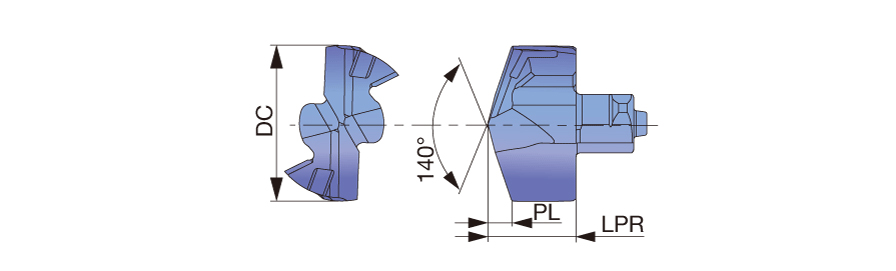

| Cutting Diameter (DC) | 11 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Point Length (PL) | 1.67 mm |
| Application | | General Drilling | | Cutting Diameter Maximum (DCX) | 11 mm |
| Grade | AH9130 | Cutting Diameter Minimum (DCN) | 11 mm |
| Tool Type | Drilling Heads | Coating | TiAlSiCrN |
| Protruding Length (LPR) | 6.45 mm | Body Material | Carbide |
| Insert Seat Size Code (SSC) | 11 | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Drill head, high strength cutting edge type. | COO | JAPAN |
| Remarks | Head diameter (DC): 6.00 17.90 / Head diameter (DC) tolerance: +0.018 / 0.005 Head diameter (DC): 18.00 25.90 / Head diameter (DC) tolerance: +0.021 / 0.005 |
Shipping Info
Weight per item
0.0000
