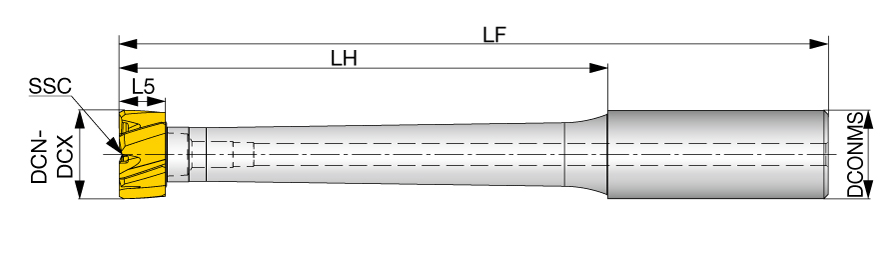

| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Diameter Minimum (DCN) | 13.5 mm |
| Application | | Reaming | | Cutting Diameter Maximum (DCX) | 16 mm |
| Insert Seat Size Code (SSC) | T6 | Functional Length (LF) | 105.4 mm |
| Body Material | Steel | Head Length (LH) | 57.4 mm |
| Measurement Type | Metric | Unit | M |
| Length Group | 3xD |
Product Features

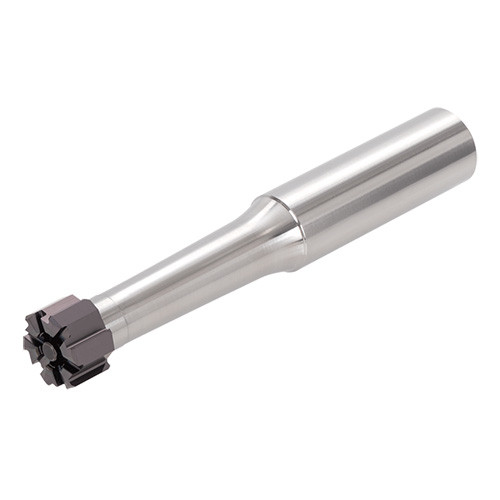

| Family Description | Indexable reamers for holemaking | COO | ISRAEL |
| Remarks | Maximum effective reaming depth = Head diameter (mm) x L/D ratio (ULDR). Ex. For a reamer with DC 12 mm: 12 mm × 3 = 36 mm |
Shipping Info
Weight per item
0.0000
