KUSTS94-XX.XX (107.00-
Single Tube Drills with Inner Single Start Thread connection and Cartridges, dia=38 - 293.99mm. Diameter adjustable. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.

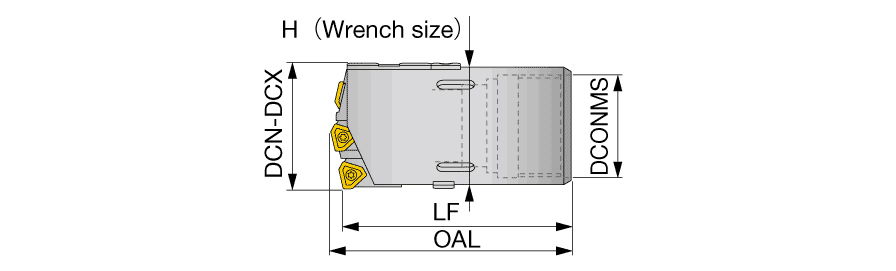

| Application | | BTA system | | Cutting Diameter Maximum (DCX) | 110.99 mm |
| Connection Diameter Machine Side (DCONMS) | 90 mm | Measurement Type | Metric |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Overall Length (OAL) | 164 mm | Unit | M |
| Cutting Diameter Minimum (DCN) | 107 mm |
Product Features
| Family Description | Single Tube Drills with Inner Single Start Thread connection and Cartridges, dia=38 - 293.99mm. Diameter adjustable. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | COO | JAPAN |
| Remarks | These products are made to order on request. For inserts and spare parts, click on "More Info". |
Shipping Info
Weight per item
0.0000
