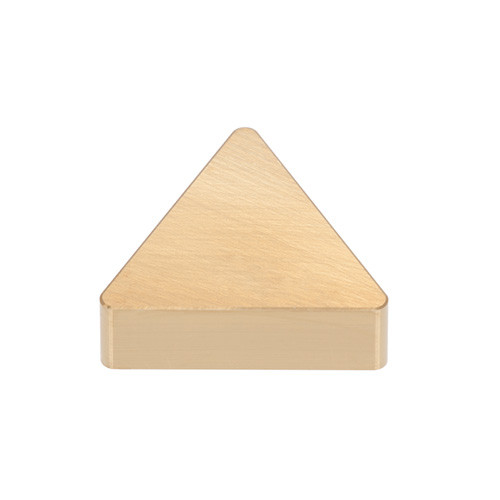

TNGN160412 TZ120
Negative relief ang., G class, triangular insert, without chipbreaker for finishing to medium cutting
| Applicable Material | | Cast Iron | | Min D.O.C. | 0.5 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 2 mm |

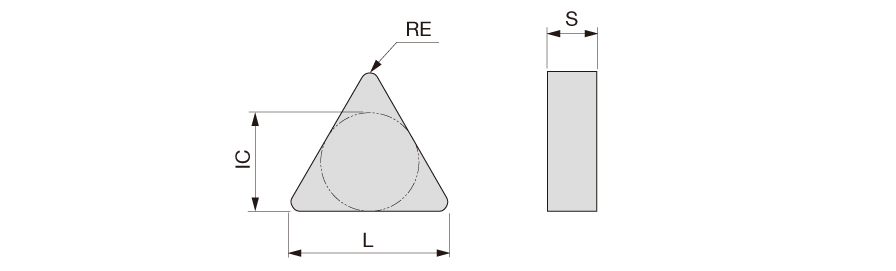

| Corner Radius (RE) | 1.2 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Cutting Edge Length (L) | 16.5 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 9.525 mm | Chip Breaker Type | FT-LX10 |
| Cutting Edge Material | Ceramic | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | TZ120 | Cutting Edge Effective Length (LE) | 12.34 mm |
| Tool Type | Turn Negative Inserts | Unit | M |
Product Features
| Family Description | Negative relief ang., G class, triangular insert, without chipbreaker for finishing to medium cutting | FamilyName | TNGN |
| COO | SOUTH KOREA | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
TNGN
BrandName
Tungaloy
