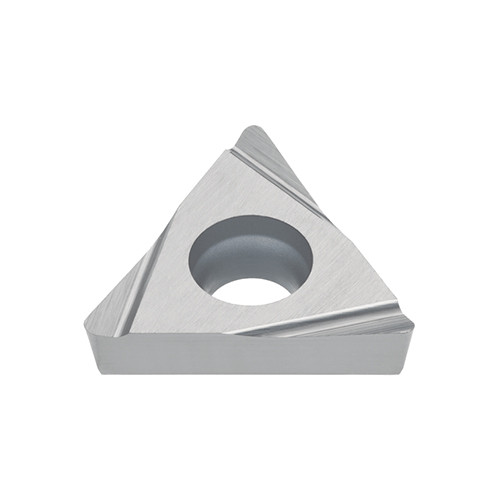

TPGT130304L-W15 TH10
Positive 11deg relief ang., G class, triangular insert, lead type chipbreaker for finishing
| Applicable Material | | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.2 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 2 mm |
| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 13.8 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Insert Thickness (S) | 3.18 mm | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 7.94 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Edge Material | Carbide | Chip Breaker Type | W15 |
| Coating | Uncoated | Measurement Type | Metric |
| Grade | TH10 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 3.4 mm | Cutting Edge Effective Length (LE) | 12.37 mm |
| Tool Type | Turn Positive Inserts | Unit | M |
Product Features
| Family Description | Positive 11deg relief ang., G class, triangular insert, lead type chipbreaker for finishing | FamilyName | TPGTR/L-W15 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0390
Name
Turning Indexable Inserts
FamilyName
TPGTR/L-W15
BrandName
Tungaloy
