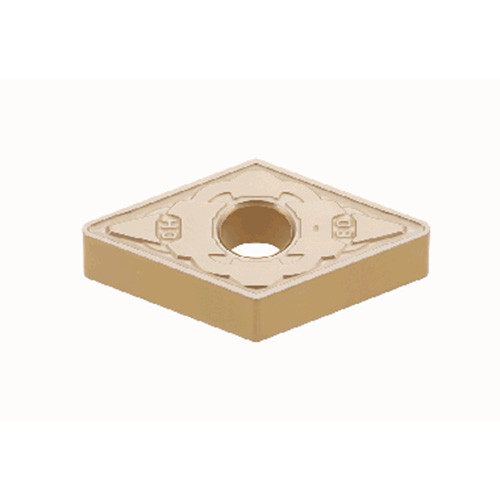

DNMG150608-CH T5125
Negative relief ang., M class, 55deg rhombic insert, for medium to heavy cutting of grey and ductile cast iron
| Applicable Material | | Cast Iron | | Min D.O.C. | 2 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 6 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.2 mm/rev |
| Cutting Edge Length (L) | 15.5 mm | Max. Turning Feed (ft(max)) | 0.6 mm/rev |
| Insert Thickness (S) | 6.35 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | CH |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | T5125 | Cutting Edge Effective Length (LE) | 13.55 mm |
| Fixing Hole Diameter (D1) | 5.16 mm | Unit | M |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief ang., M class, 55deg rhombic insert, for medium to heavy cutting of grey and ductile cast iron | FamilyName | DNMG-CH |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.1770
Name
Turning Indexable Inserts
FamilyName
DNMG-CH
BrandName
Tungaloy
