FNMG110402E-TSF T6215
Negative relief ang., M class insert for finishing with corner angle 45 degree for existing toolholder carrying DN**1104**E insert.
| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 0.2 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 1.5 mm |

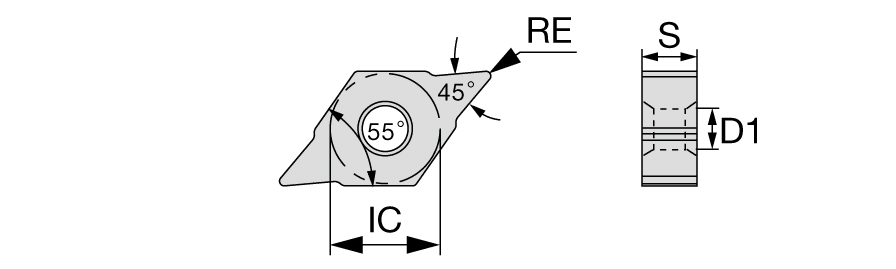

| Corner Radius (RE) | 0.2 mm | Min. Turning Feed (ft(min)) | 0.08 mm/rev |
| Cutting Edge Length (L) | 11.6 mm | Max. Turning Feed (ft(max)) | 0.4 mm/rev |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 9.525 mm | Chip Breaker Type | Nega-TSF |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | T6215 | Cutting Edge Effective Length (LE) | 3 mm |
| Fixing Hole Diameter (D1) | 3.81 mm | Unit | M |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief ang., M class insert for finishing with corner angle 45 degree for existing toolholder carrying DN**1104**E insert. | FamilyName | FNMG*E-TSF |
| Remarks | Make sure to offset the cutting edge position after insert change. Please note that the insert shim may interfere with the workpiece when FNMG insert is used with Q style toolholder to undercut a work diameter of 50 mm or smaller. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
FNMG*E-TSF
BrandName
Tungaloy
