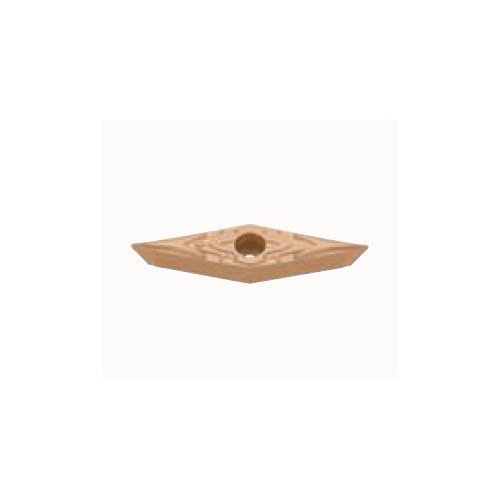

YWMT11T202-ZF T6215
Positive relief ang., M class, 25deg rhombic insert, for finishing to medium profiling
| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 0.2 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 1.5 mm |

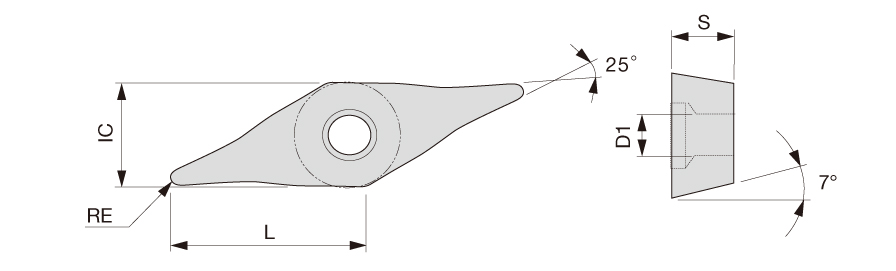

| Corner Radius (RE) | 0.2 mm | Min. Turning Feed (ft(min)) | 0.07 mm/rev |
| Cutting Edge Length (L) | 11.1 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Insert Thickness (S) | 2.78 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 4.679 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | YPro Posi-ZF |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Metric |
| Grade | T6215 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 2.3 mm | Cutting Edge Effective Length (LE) | 10.12 mm |
| Tool Type | Turn Positive Inserts | Unit | M |
Product Features
| Family Description | Positive relief ang., M class, 25deg rhombic insert, for finishing to medium profiling | FamilyName | YWMT-ZF |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
YWMT-ZF
BrandName
Tungaloy
