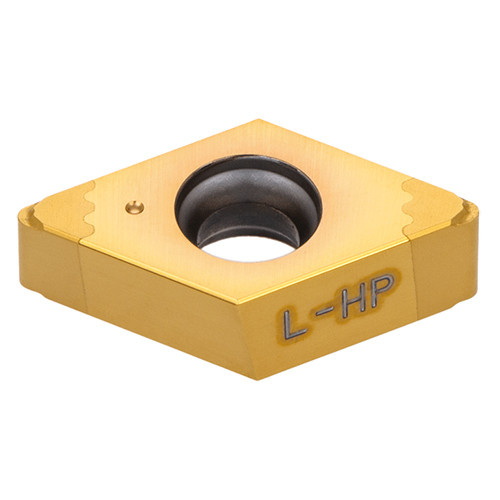

4QS-DXGU070304R-HP BXA10
Double sided 55 deg rhombic CBN insert with chipbreaker for precision finishing hardened steel, applied WavyJoint brazing technology
| Applicable Material | | Hard Materials | | Depth of Cut Maximum (APMX) | 0.5 mm |
| Application | | Inserts | | Min. Turning Feed (ft(min)) | 0.05 mm/rev |

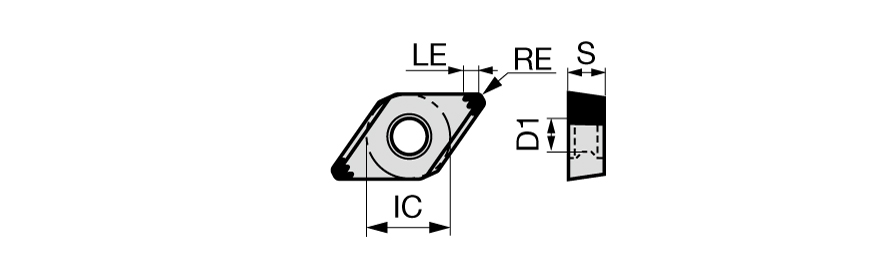

| Corner Radius (RE) | 0.4 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Insert Thickness (S) | 3.18 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | PCBN | Chip Breaker Type | MFT Wavy-HP |
| Coating | TiAlN+TiCN | Measurement Type | Metric |
| Grade | BXA10 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 2.7 mm | Cutting Edge Effective Length (LE) | 2 mm |
| Tool Type | Turn Positive Inserts | Unit | M |
| Min D.O.C. | 0.05 mm |
Product Features
| Family Description | Double sided 55 deg rhombic CBN insert with chipbreaker for precision finishing hardened steel, applied WavyJoint brazing technology | FamilyName | 4QS-DXGU-HP |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
4QS-DXGU-HP
BrandName
Tungaloy
