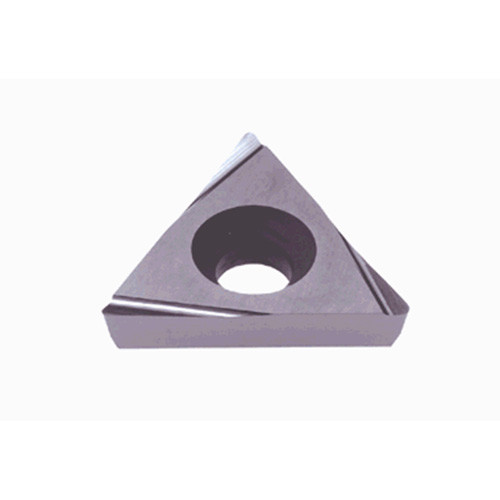

TPGM070104L NS9530
Positive 11deg relief ang., G class, triangular insert, leadtype chipbreaker for finishing to medium cutting
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Min D.O.C. | 0.2 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 2 mm |
| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 7.6 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Insert Thickness (S) | 1.59 mm | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 4.37 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Edge Material | Cermet | Chip Breaker Type | LB |
| Coating | Uncoated | Measurement Type | Metric |
| Grade | NS9530 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 2.7 mm | Unit | M |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Positive 11deg relief ang., G class, triangular insert, leadtype chipbreaker for finishing to medium cutting | FamilyName | TPGM-R/L |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0130
Name
Turning Indexable Inserts
FamilyName
TPGM-R/L
BrandName
Tungaloy
