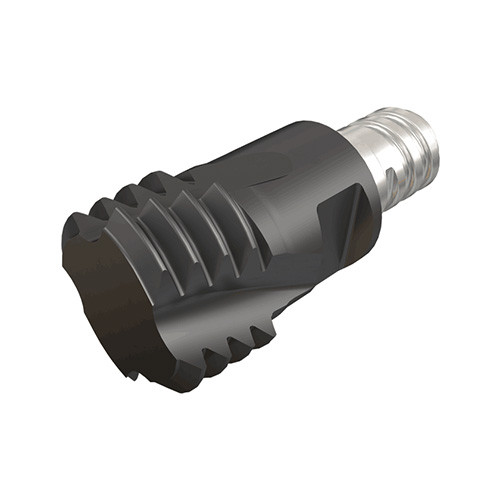

VMT154L13IS25-5S08 AH725
Carbide milling heads with a threaded connection for internal ISO metric thread.

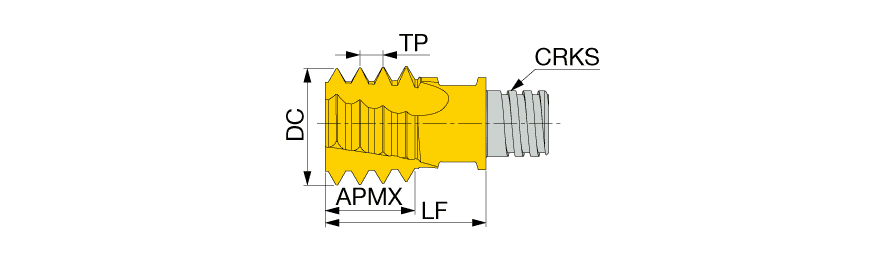

| Thread Pitch (TP) | 2.5 mm | Threads per Inch Maximum (TPIX) | 10.2 |
| Depth of Cut Maximum (APMX) | 12.7 mm | Threads per Inch Minimum (TPIN) | 10.2 |
| Connection Thread Nominal Size Machine Side (THSZMS) | S08 | Thread Pitch Minimum (TPN) | 2.5 mm |
| Cutting Diameter (DC) | 15.4 mm | Thread Pitch Maximum (TPX) | 2.5 mm |
| Flute Count (NOF) | 5 | Functional Length (LF) | 20 mm |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | AH725 | Overall Length (OAL) | 20 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Body Material | Carbide |
| Application | | Int. Thread Milling | | Thread Size | =>M22 |
| Cutting Edge Material | Carbide | Unit | M |
| Tool Type | Solid carbide thread mills |
Product Features
| Family Description | Carbide milling heads with a threaded connection for internal ISO metric thread. | COO | ISRAEL |
| Remarks | Torque: Recommended torque (Nm) for clamping |
Shipping Info
Weight per item
0.0820
