ERRQ10M020C20.0R02

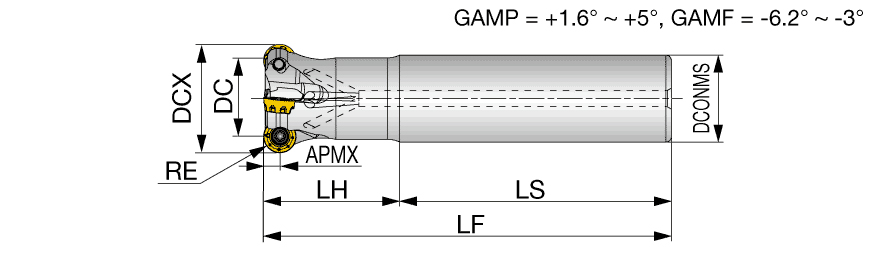

Radius endmill with anti-rotation system, shank type
| Cutting Diameter (DC/DCX) | 10 mm | Master Insert Identification (MIID) | RQMT10T3ENC8-MM |
| Cutting Diameter (DC) | 10 mm | Head Length (LH) | 50 mm |
| Cutting Item Count (CICT) | 2 | Functional Length (LF) | 150 mm |
| Depth of Cut Maximum (APMX) | 5 mm | Tool Type | Corner rounding endmills |
| Overall Length (OAL) | 150 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Profile Milling | | Cutting Diameter Maximum (DCX) | 20 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Unit | M |
Product Features
| Family Description | Radius endmill with anti-rotation system, shank type | FamilyName | ERRQ |
| Remarks | Wrenches of ERRQ10M032C32.0R05 and ERRQ12M032C32.0R03 are sold separately. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Indexable End Mills
FamilyName
ERRQ
BrandName
Tungaloy
